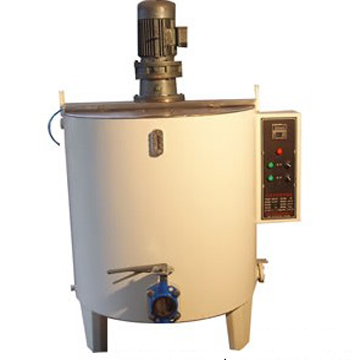

BW55-2 巧克力保温缸
用途:
本缸是经精磨缸后的巧克力浆料额定保温,搅拌调和的存储容器。
特点:
本机浆叶顺时针旋转搅拌,温度可调,液晶显示,缸内巧克力浆料混合均匀
,受温一致,使浆料油脂不致分离,并具有脱臭、排出气泡和成品色泽光亮等功能。
Purpose:
The blade rotate by clockwise rotation, the machine’s speed is adjustable
, it has liquid crystal display, the chocolate syrup mix even and well-tempertured
, thus the syrup and the oil-bearing material will not be seperately, and it has the
function of deodorizing and breeding out steam void, the end products has very
shiny appearance.
Features:
The blade rotate by clockwise rotation, the machine’s speed is adjustable,
it has liquid crystal display, the chocolate syrup mix even and well-tempertured,
thus the syrup and the oil-bearing material will not be seperately, and it has the
function of deodorizing and breeding out steam void, the end products has very
shiny appearance.
基本参数:
Basic parameters :
整机容量
Equipped capacity
|
3.5kw/380v
|
其中2kw用于温控常开
Those of 2kw are used with its temperature controller being not constantly switched on
|
主轴转速
Mainshaft’s rotation speed
|
14r/min
|
|
大容量
Maximum volume
|
550L
|
|
整机容量
Weight of total machine
|
620kg
|
|
外形尺寸
Boundary dimensions
|
1000*1200* 1960 l .b.h. mm
|
